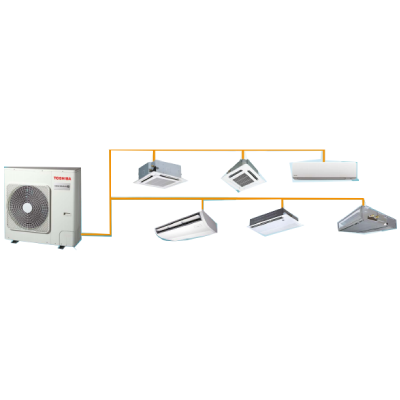

VRF (Variable Refrigerant Flow)
Energy intense and special industrial applications depend on chillers for precise control of process cooling. Along with air handling units and fan_01 coil units, a chiller provides the required conditions in typical work spaces. So when it comes to chilled water systems, there are different requirements and one size does not fit all.
- Superior full load performance
- Environmentally responsible design with low refrigerant charge
- Intelligent low footprint, low weight, vertical stack design
- Low condenser-entry water operations
- Superior oil management and high-quality twin screw compressor
Energy intense and special industrial applications depend on chillers for precise control of process cooling. Along with air handling units and fan_01 coil units, a chiller provides the required conditions in typical work spaces. So when it comes to chilled water systems, there are different requirements and one size does not fit all.
- Superior full load performance
- Environmentally responsible design with low refrigerant charge
- Intelligent low footprint, low weight, vertical stack design
- Low condenser-entry water operations
- Superior oil management and high-quality twin screw compressor

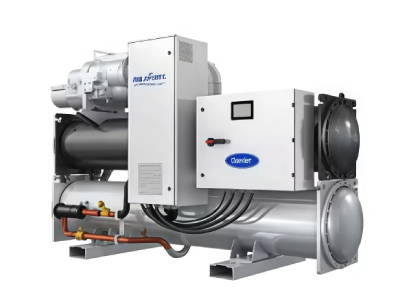

Chillers
- Superior Performance
IPLV: 9.8
IPower Factor: >0.98 - Reliable Screw Compressor
Carrier's own '06T' semi-hermetic compressor Patented line design rotors & microprocessor control - Compact Foot Print
1.0 m ~ 1.4 m width - easy through standard doorway
Saves plant room space - reduces investment Best suited for new construction as well as ret projects

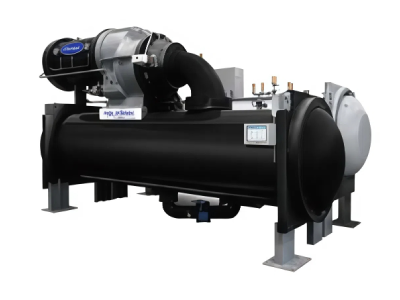

- Highly Reliable
Reliable & economical vaneless diffuser Super reliable heat exchanger design - High Efficiency
Full Load COP: upto 6.5
IPLV: upto, 7.4 with 19XR &
upto 10.5 with 19XRV - Installation Features
Positive system design reduces footprint by ~ 30% Cooler, condenser & compressor bolted together for easy maintenance Super reliable heat exchanger design

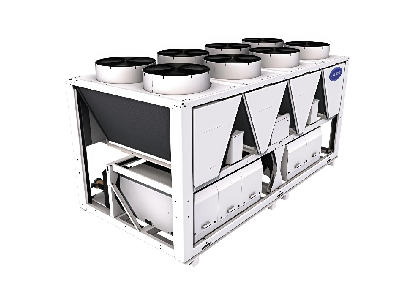

- High Efficiency
IPLV: 5.58
Full Load COP: 3.1 - High Reliability
Intuitive & user-friendly Touch Pilot control interface
Carrier's own '06T' semi-hermetic compressor Short cycle protection - Quiet Operation
Low noise level design Night mode feature on standard Touch Pilot Silencer in oil separator line

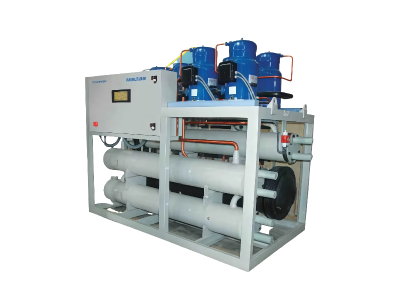

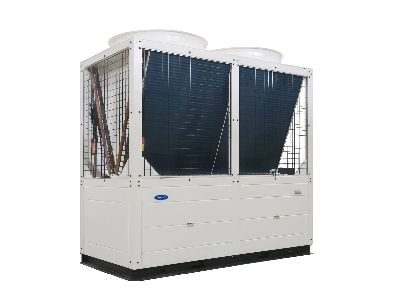

- Cooling capacity: 18.7 to 590 Tons (65 to 2,075 kW)
- Free master Module Design
- Intelligent Air Volume Management
- Compact Design And Smaller Footprint
- Reliable Hermetic Scroll Compressor
- High Precision Electronic Expansion Valve
- Cooling capacity:12.5 to 95 TR
- Energy Efficiency
- Higher Energy Efficiency
- Easy to Install

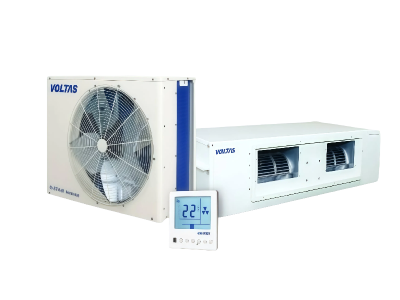

Multi-Split & Ductable AC
Capacity Range (1 TR-22 TR)

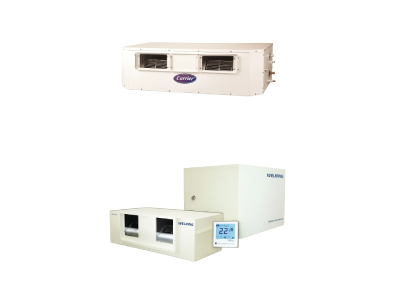

Standard Water-Cooled Ceiling Suspended Ductable Split Units
- The Capacity range starts from 5.5TR - 22 TR
- Hermetic Scroll compressor are available with R22, R407C, and R410A refrigerants.
- Indoor units power supply is 230 V - 1 Ph - 50 Hz (2 Wire, AC Supply)
- Outdoor units power supply is 3 Ph - 415V - 50 Hz - 5 wire(R,Y,B,N,G).
Standard Air-Cooled Ceiling Suspended Ductable Split Units
- The capacity range starts from 5.5 TR - 17 TR
- Hermetic Scroll compressor are available in R22 and R407C refrigerants.
- The power supply required for the outdoor unit is 3 Ph - 415V - 50 Hz - 5 wire(R,Y,B,N,G)
- The power supply needed for the indoor unit is 230 V - 1 Ph - 50 Hz (2 Wire, AC Supply).

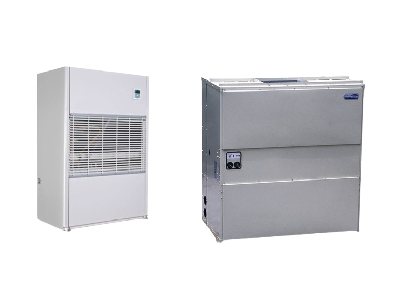

Package Air conditioners
- Cooling capacity: 90,000 - 895,500 BTU/H
- Auto restart function
- With R407C Refrigerant
- Water Cooled type

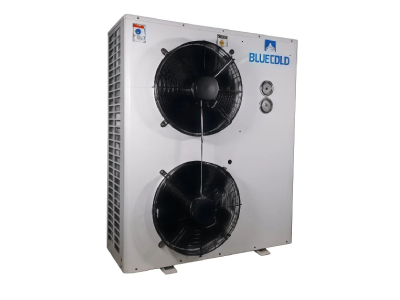

Cold Storage
- Cooling capacity: 1.5 kW to 100 kW
- Single stage or two stage reciprocating & scroll compressor
- Design for Indian atmospheric conditions
- Medium, low and ultra-low temperature application.

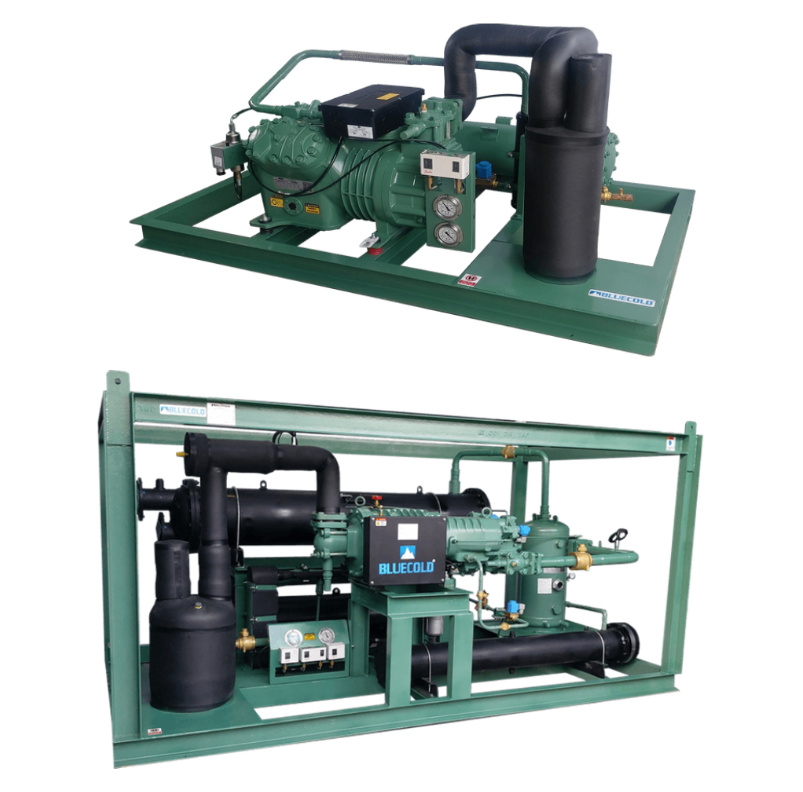

- Cooling capacity ranging from 15 kW to 450 kW
- Dedicated HP/LP switch for individual compressor Suction gas header
- Oil return filter with individual oil return valve
- Motor protection device sE-i1 full sensor kit
- Individual electronic oil management system and high-pressure oil return with alarm

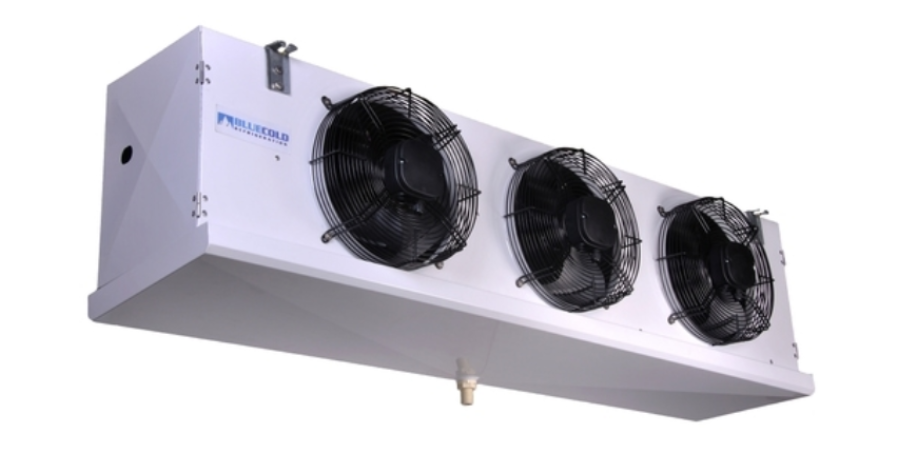

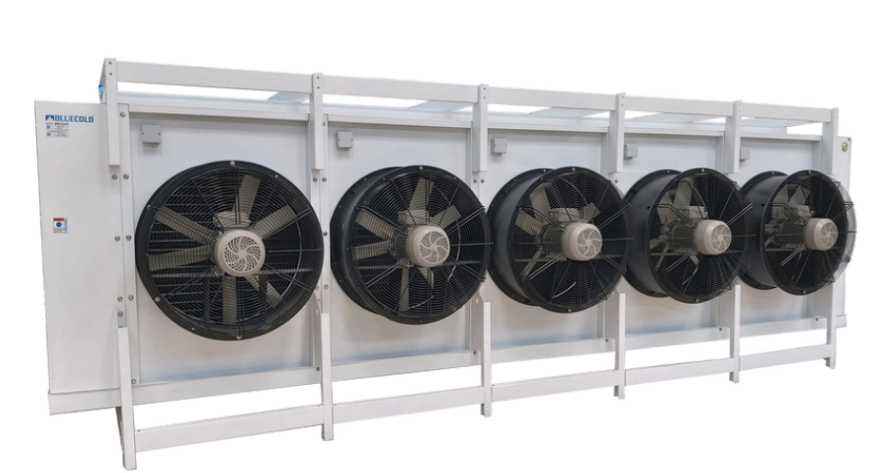

- Cooling capacity ranging from 1.2 kW to 60 kW
- Collared fan outlet for wide air throw
- SS ceiling mounting clamps for easy installation
- Double drip tray
- Drip tray with edges inclined at 30° angle
- AlMg powder coated, GI powder coated & SS 304 casing for rust free operation
- Bullet expansion on tubes
- Air, Electric, Hot gas & water defrost option
- Fin spacing available from 4 mm to 7 mm
- Models available with 1 to 8 Fans
- Available for Freon & Ammonia refrigerants
- Bullet expansion on copper tubes in Freon units, and hydraulic expansion on SS tubes in ammonia units
- Temp Ranging from -5 °C (Blast chiller) to -45 °C (Blast Freezer)
- GI powder coated & SS 304 casing for rust free operation
- Air, Electric, Water & Hot gas option
- Cooling capacity ranging from 5 kW to 120 kW
- Fin spacing available from 4 mm to 10 mm
- Corrugated fin design for low pressure drop and efficient heat transfer
- For Chiller Room (-12 °C to 10 °C)
- Reciprocating CR Series Compressors: CR 53, CR 62 & CR 72
- Scroll ZB Series Compressors: ZB 38, ZB 45, ZB 48 & ZB 58
